Sample Regulator Inspection Photos

For each regulator inspected, photographs are taken of the major components.  Each photo is captioned to describe the condition of the component.   A sample of photos for a site are shown below.

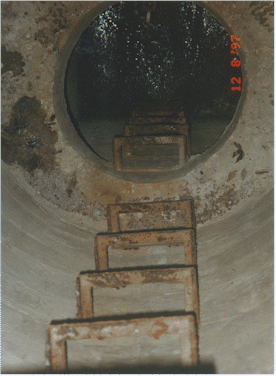

Looking down through manhole to the regulator

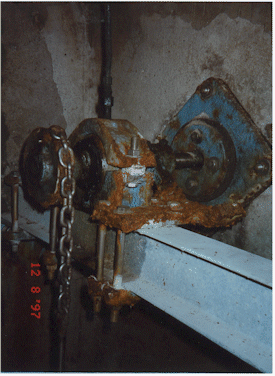

View of float wheel on transmission. Components are corroded and in need of shop reconditioning or replacement. Transmission linkage and bolting are stainless steel and in good condition.

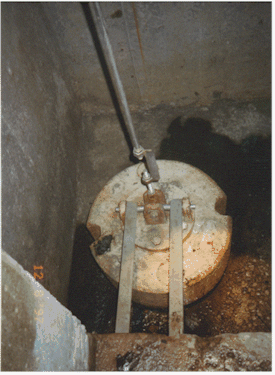

View of float and hinge guide assembly. All equipment is in good condition. Recommend minor cleaning and maintenance. Clear deposits from chamber and telltale.

















Actual number of photos taken during an inspection is determined to best depict field conditions, unless specified otherwise.

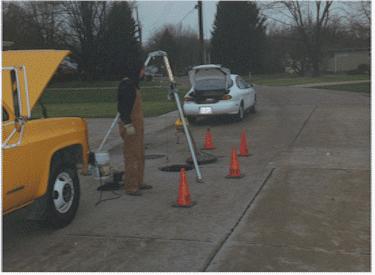

Access manhole to regulator chamber

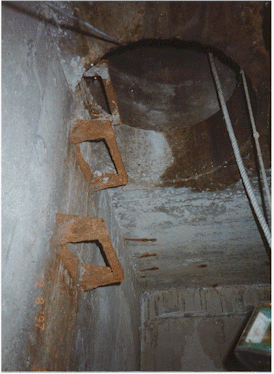

Looking up to manhole from regulator. Manhole steps are corroded. This type, if corroded, can shear without warning. Recommend removal and replacement.

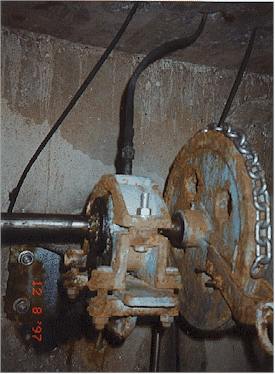

View of gate wheel. Same conditions as float wheel.

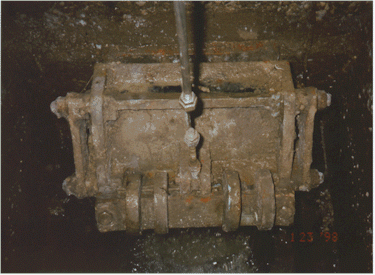

View of regulator gate assembly which is in good condition. Some cleaning and maintenance is required. Transmission linkage is in good condition for reuse.

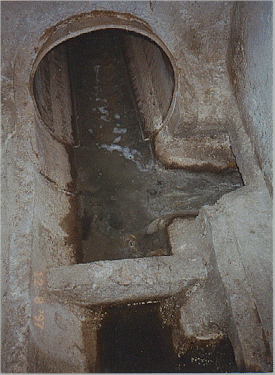

Diversion chamber behind regulator. Dam diverts the dry weather flow through the regulator.
